The trailer that never sleeps.
Solar-autonomous mobile surveillance. 5MP PTZ with 25× zoom, three 8MP wide-angle turrets for 360° coverage, and cloud-based AI analytics — all driven by a 24/7 staffed SOC. One person deploys it in under 20 minutes.
Dealer or integrator? Partner pricing available →
900W SOLAR · 11.7 kWhThe fastest turnaround in the industry.
Whether you need one unit by Friday or a 50-unit multi-state fleet deployment, VDS turns faster than anyone else in the market. We build continuously and ship from our Maryland facility.
Imaging system.
Pan-tilt-zoom optical
5MP resolution with 25× optical zoom, IR-cut filter, and continuous 360° pan for persistent wide-area coverage day or night.
360° situational awareness
Three 8MP 2.8mm wide-angle turret cameras provide overlapping wide-area coverage across the full site perimeter.
What makes it different.
Native DC. No conversion losses.
Most surveillance trailers convert DC battery power to AC through an inverter, then back to DC for cameras and networking — losing 15–25% of stored energy in the process. The VDS MSU distributes native DC directly at 12V, 24V, and 48V from both the top enclosure and bottom chassis.
- 12V · 24V · 48V DC outputs — top and bottom
- No inverter — no conversion losses
- More runtime per charge
- Supports virtually any surveillance device
Solar, shore power, or generator. Your call.
The built-in battery charger connects to shore power or a generator through the inlet — automatically keeping the battery topped off when grid or generator power is available. Pair with solar for fully autonomous off-grid operation or supplement on long-duration deployments.
- 900W bifacial solar array standard
- Built-in AC-to-DC battery charger included
- Shore power or generator via inlet
- 11.7 kWh LiFePO4 — largest capacity in class

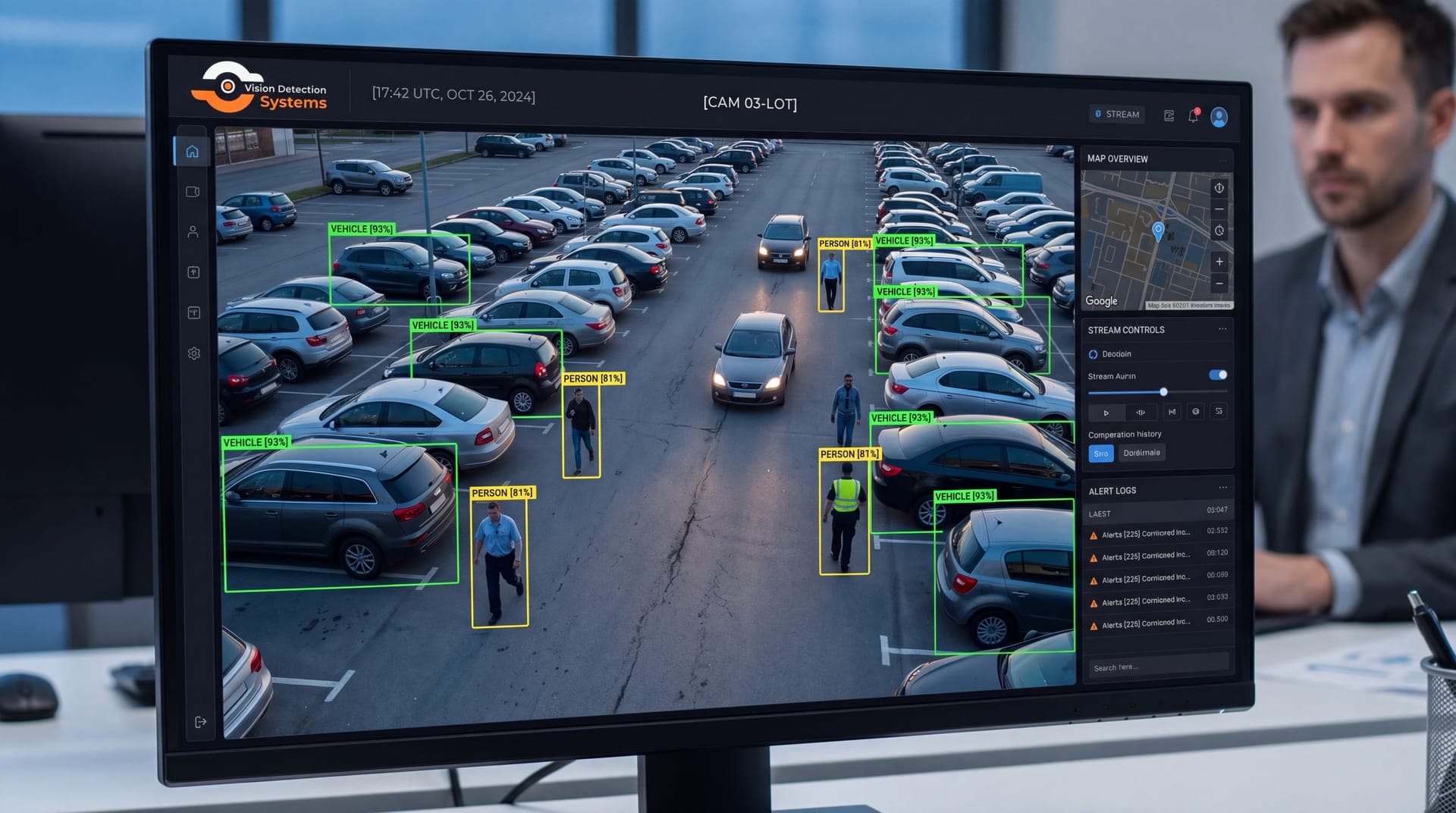

VisionStream cloud AI.
Video streams to VisionStream where AI models classify person, vehicle, weapon, fire, and smoke in real time. False positives are filtered before they reach an operator, and models update continuously over the air.
- Person / vehicle / weapon / fire / smoke
- Cloud-based real-time inference
- Dramatic false-positive reduction
- OTA model updates
Resolve before escalation.
A 120 dB horn and high-visibility red/blue strobes give the SOC immediate intervention tools. Pre-recorded warnings and live audio talk-down resolve the majority of incidents without dispatch.
- 120 dB horn speaker
- High-visibility red/blue strobes
- Pre-recorded + live talk-down
- Most incidents resolve without dispatch
Operational by this afternoon.
Tow behind any half-ton truck with a standard 2-inch ball hitch. The 22 ft telescopic mast goes up with a manual or electric winch. Solar panels rotate to face south at any site orientation. Cellular self-registers on the network.
- 2-inch ball hitch — any half-ton vehicle
- 22 ft telescopic mast — manual or electric winch
- Rotate solar panels south for maximum harvest
- 4 corner stabilizing jack outriggers — no guy wires
- Built-in forklift pockets for flatbed loading
- Operational in under 20 minutes — one person
Zero exposed wiring.
Most surveillance trailers run cables down the outside of the mast — exposed to weather, vibration, and tampering. Every VDS MSU routes power and data fully internal through a protected channel, with an integrated cable reel and slip ring for clean deployment every time.
Internal protected wiring
Full mast length, no exposed cables
Cable reel + slip ring
Zero cable stress during raise, lower, or rotation
4× power + Cat6 data
Power and network reach the mast head natively
Rotating solar mast
Angle panels south regardless of trailer orientation
11.7 kWh of LiFePO4 energy storage — the largest battery capacity in class. At a typical 150W surveillance load, that's 70+ hours of fully off-grid runtime before solar input. Backed by a built-in charger that accepts shore power or generator — so there's always a way to keep it running.
Built for integrators.
Camera-agnostic. Open ONVIF platform. White-label VMS. No mandatory subscription. The MSU ships with all power, connectivity, and mounting infrastructure pre-installed — your cameras, your brand, your client relationship.
Partner pricing available →Full specification.
Power System
Mast & Structure
Imaging
Connectivity
Top Box / Enclosure
Platform & Software
Physical & Compliance
Drop an MSU on your site this week.
Tell us the address, threat model, and timeline. We'll quote the trailer, monitoring plan, and deployment date.
